| A19 |
[Causes] |
(1) |
In the graphic library, no parameter setting is made for the graphic. |
| |
|
(2) |
No parameter setting is made for the graphic mode or the graphic relay. |
| |
|
|
|
| |
[Solutions] |
(1) |

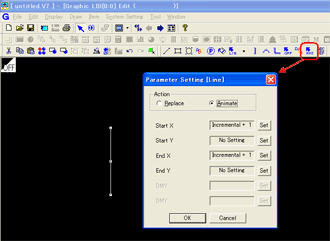

In the graphic library, click the [Parameter] icon on the [Draw] toolbar. Set parameters in the dialog to be displayed. |
| |
|
|
|
| |
|
|
|
| |
|
|
*
|
The options in the [Parameter Setting] dialog vary, depending on the selected item. |
| |
|
|
|
|
| |
|
(2) |
In the graphic mode or graphic relay setting, specify the total number of parameters for each graphic. The number of words and the allocation of addresses with regard to the command memory are determined based on the above-mentioned total number and the specified parameter number. |
| |
|
|
|
| |
|
|
Setting dialogs |
|
| |
|
|
|

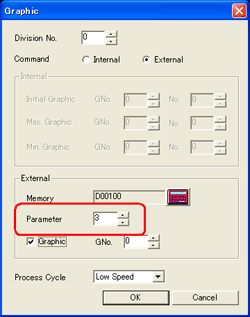

(For the graphic mode) |
| |
|
|
|
 |
| |
|
|
|
|
| |
|
|
|

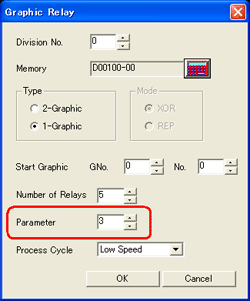

(For the graphic relay) |
| |
|
|
|
 |
